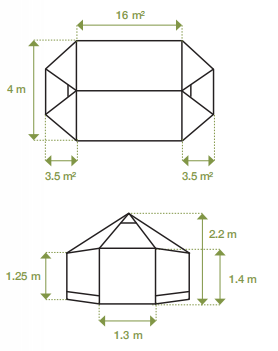

Total living area 23 m²
Main floor 16 m²
Two vestibule area 3.5 m² x 2 = 7 m²
Centre height 2.20 m
Width 4.00 m
Ridge length 4.00 m
Side wall height 1.25 m
Centre base length 6.60 m
Tent doors (width and height)
Total size 1.30 x 1.40 m
Door flaps 1.40 x 1.60 m
Upper part 1.40 x 0.90 m (PC)
Lower part 1.40 x 0.70 m (PE)
Upright poles
2 Upright poles 2.20 m (25 mm x 1.2 mm)
1 Centre upright pole 2.17 m (32 mm x 1.2 mm)
Pole diameter 25 x 1.20 m
Side poles
6 Side poles 1.25 m
4 door poles 1.40 m
Pole diameter 19 x 1.25 m (19 mm x 1 mm)
